Product Description

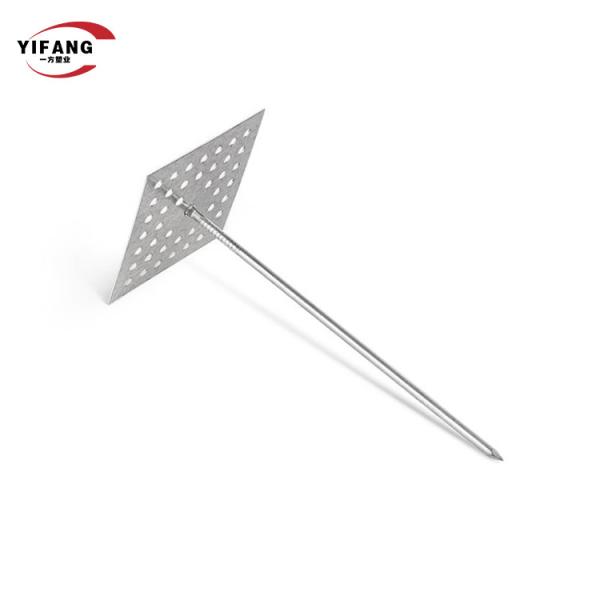

Aluminum insulating nail is made of iron sheet and aluminium wire,
It is used to fix the insulating layer on the insulating body,The
length of the insulating nail is selected according to the
thickness of the insulating layer,It needs to be used with special
glue for insulating nail,It is mainly used for fixing glass wool
and rock wool.
Product Parameters
Insulation anchor thermal insulation pin specification:
| Item Noize(mm)m) | Size(Size(mm)mm)Size(mm) | Pin Diameter(mm) | Pin Length (mm) | Washers |
| No.1 | 24*24 | 1.70 | From 20mm to 300 mm are standard | Self - locking washers are available in a variety of sizes, Shapes.
and materials |
| No.2 | 35*35 | 2.67&3.00 | From 20mm to 300 mm are standard | Self - locking washers are available in a variety of sizes, Shapes.
and materials |
| No.3 | 50*50 | 2.67&3.00 | From 20mm to 300 mm are standard | Self - locking washers are available in a variety of sizes, Shapes.
and materials |
Product Display
Recommended assembly method :
1.Work surfaces should be clean and dry, free of dust, grease, oil
and any other loose matter.
2.Remove the protective release paper taking care not to touch the
adhesive.
3.Place the hanger in the required position and press the base
against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with
fastening clips but maximum strength of adherence is achieved after
24 hours.
Pin cover :
Protect people hand from being injured when putting insulation.
Insulation Anchor thermal insulation pin usage :
Exclusively used for fixing adiabatic materials in ducts of
air-conditioner, for glass-wool and rock-wool in soundproofing
works, and for the duct-lining.
Product Advantages
It has anti-aging, anti-temperature sudden change, anti-corrosion,
cold-resistant and heat-resistant; high bearing capacity, high
pressure bearing and good tensile performance; it is not easy to
deform, moisture-proof, vibration-relieving, and good thermal
insulation after loading.
